Sonic Nozzles

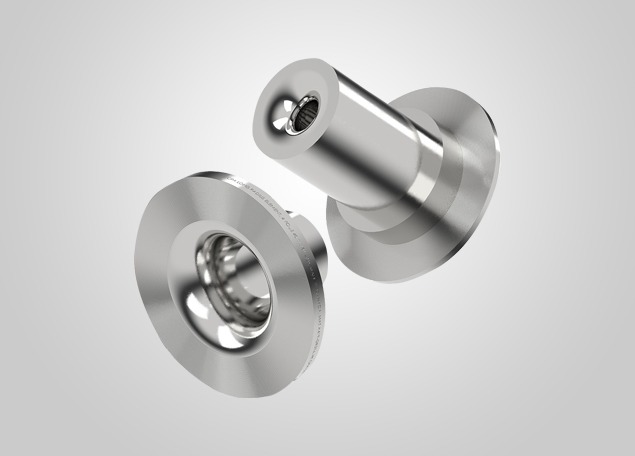

The CPA Sonic Nozzle provides reliable flow limiting to protect gas meters, valves, and pipeline equipment. When gas velocity reaches the speed of sound at the nozzle throat, flow becomes choked, fixing the maximum mass flow rate and preventing overspeed damage.
Manufactured to ASME 7M standards, CPA Sonic Nozzles deliver repeatable, maintenance-free performance with better stability and pressure recovery than restriction orifice plates.
- Protects all meter types, valves, and probes from overspeed
- No moving parts, low fouling, zero maintenance
- Custom sizes and materials available
- Superior to restriction orifice plates: true choking and lower pressure drop
- Optional pressure taps for backup gas measurement
Installation
Installed downstream of the equipment to be protected
Mounting
Mounted between raised face flanges with gaskets
Design Options
Available in FOUE (inlet flange) or FODE (outlet flange) designs
- ️ Natural Gas – Custody transfer meter protection
- Petrochemical – Flow control in process plants
- Power – Gas turbine and utility lines
- Industrial Utilities – Reliable overspeed protection
