XSENS XACT
Clamp-On Liquid Flow Rate & Water Cut Meter

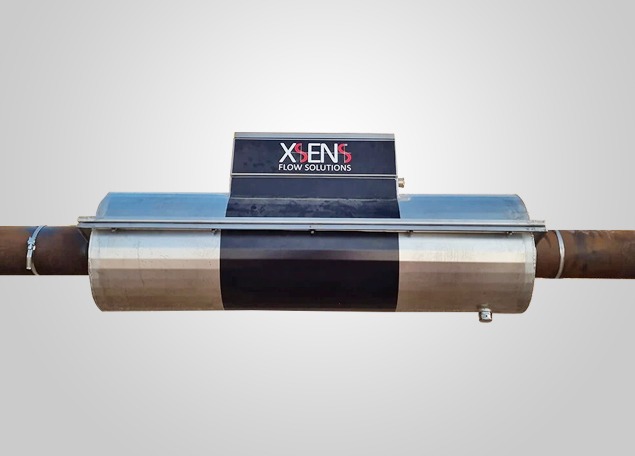

The XSENS XACT Liquid Flow Rate & Water Cut Meter delivers 2-in-1 measurement: accurate flow rate and water cut (WLR) for oil–water mixtures. Using clamp-on ultrasonic technology, the meter installs in 2–3 hours without pipe cutting or shutdown. It measures both flow velocity (via full-bore acoustic profiling) and water cut (via Speed of Sound detection), achieving ±1% flow accuracy and ±1% absolute water cut accuracy.
Non-intrusive design ensures long-term reliability with no erosion, scaling, or waxing, making the XACT ideal for upstream, midstream, and industrial liquid measurement.
- 2-in-1 meter: flow rate + 0–100% water cut
- Accuracy: ±1% of flow and ±1% abs. WLR
- Clamp-on, non-intrusive installation (no mixers, no straighteners needed)
- Turn-down ratio 400:1 (0.1–40 m/s velocity range)
- Handles any viscosity (from water to heavy bunker oil)
- Immune to pressure, sour service, or corrosive fluids
- Outputs: 4–20 mA, Modbus, WiFi, cellular, satellite
- ATEX / IECEx Zone 1 & 2 certified (non-certified options available)
- Local display and remote monitoring available
Line Sizes
1.5” to 36” (larger on request)
Pipe Materials
Carbon Steel, SS316, Duplex, others
Flow Velocity Range
0.1 – 40 m/s
Viscosity
No limit; water to heavy crude
Design Pressure / Temperature
No limit; -20 °C to +100 °C (higher optional)
Transducers
Up to 6 pairs for redundancy
Accuracy
±1% of flow; ±1% abs. WLR
Outputs
4–20 mA, Modbus RS-485, optional IoT comms (WiFi, Canbus, Profibus)
Power Supply
12–24 VDC (typical 9.5 W; 11 W startup)
Ingress Protection
IP66 (higher on request)
Hazardous Area
ATEX/IECEx Zone 1 & 2 certified
- Oil & Gas – Separator monitoring, pipeline allocation, well testing
- Process Industry – Multiphasic liquid monitoring
- Marine / Tankers – On/off-loading shuttle tankers
- Water Injection & Enhanced Recovery – WLR monitoring in injection lines
- Industrial Utilities – Retrofit metering in aging pipeline systems
